Connect an MCP client

This tutorial connects an MCP client to synsmarts and verifies that the client can see only the tools and Apps allowed by its Team access.

Before you begin

You need:

• Claude Code or Codex on the computer where you will use synsmarts;
• an active membership with MCP access switched on in the Team you want to authorize;
• for Diagnostics or Control App-scoped tools, at least one App included by the connection.

Human users authorize with an OAuth authorization code with PKCE. Agents, bots, service accounts, and unattended automation use the Team-owned client credentials created for them.

Human connections start in Claude Code or Codex. The browser consent screen creates a connection after you choose the Team, Apps, and permissions. You don’t enter a client ID, client secret, callback port, or redirect URI.

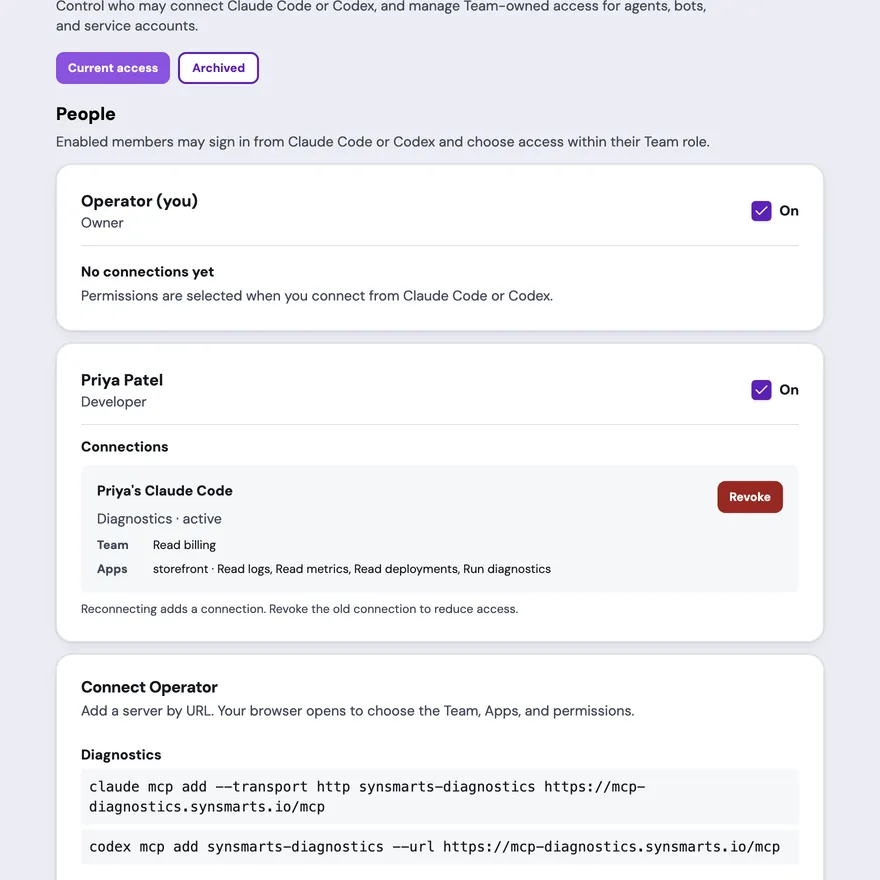

Owners and admins switch People on and create machine access separately on the Team’s MCP access page. Machine secrets are shown once.

1. Choose a server

Choose one customer server:

Goal	Server URL
Observe, investigate, and analyze Apps without changing them	https://mcp-diagnostics.synsmarts.io/mcp
Run validated customer operations that can change an App or Team	https://mcp-control.synsmarts.io/mcp
Search and read published synsmarts customer documentation	https://mcp-docs.synsmarts.io/mcp

Each connection and access token belongs to exactly one protected server. Diagnostics and Control tokens aren’t interchangeable. Docs is public and needs no access or access token.

2. Connect Claude Code

Run the command for the surface you selected:

claude mcp add --transport http synsmarts-diagnostics https://mcp-diagnostics.synsmarts.io/mcp
claude mcp add --transport http synsmarts-control https://mcp-control.synsmarts.io/mcp
claude mcp add --transport http synsmarts-docs https://mcp-docs.synsmarts.io/mcp

Add only the surfaces you intend to use. Claude Code discovers its public OAuth client metadata automatically.

3. Connect Codex

Run the matching add and login commands for Diagnostics or Control:

codex mcp add synsmarts-diagnostics --url https://mcp-diagnostics.synsmarts.io/mcp
codex mcp login synsmarts-diagnostics

Replace diagnostics with control for the Control surface. Codex registers itself automatically before opening the browser.

Docs needs only the add command:

codex mcp add synsmarts-docs --url https://mcp-docs.synsmarts.io/mcp

Use a recognizable local name such as synsmarts diagnostics, synsmarts control, or synsmarts docs. The local name doesn’t change the server, Team, Apps, or permissions associated with the connection.

4. Authorize Diagnostics or Control

Review the scope being authorized before you approve it:

1. Complete browser sign-in if requested.
2. Review the Team, MCP surface, Apps, and permissions.
3. Select Authorize.
4. Return to Claude Code or Codex.

Authorization creates a separate human connection for that client and surface. It is limited by your Team role: developers can choose App-scoped Diagnostics or Control, while billing members can choose only Diagnostics billing read. No MCP-specific two-factor enrollment or step-up is required. Reconnecting adds another connection; it doesn’t narrow or replace an older one. Revoke the old connection when you reconnect with less access.

Skip this step for Docs. For unattended Diagnostics or Control automation, configure the machine client credential instead of copying a human token. Access tokens are short-lived and bound to the selected server’s OAuth resource.

Keep access tokens out of prompts, source control, shell history, and any client configuration field that isn’t protected as a credential.

5. Connect an agent, bot, or service account

Use this flow only for unattended Diagnostics or Control clients. Human users should use the browser authorization flow above.

An owner or admin creates the machine access from the Team’s MCP access page:

1. Open Agents, bots & service accounts and select Create access.
2. Enter one recognizable Name for the machine.
3. Choose Diagnostics or Control, the allowed Apps, and the permissions.
4. Create the access and copy the client ID and client secret. The secret is shown once.
5. Store the secret in a secrets manager. Inject it into the process environment at runtime; don’t commit it to a repository or save it in an MCP configuration file.

The following local shell example obtains a Diagnostics token. It prompts for the one-time secret so the secret itself doesn’t appear in shell history:

export SYNSMARTS_CLIENT_ID='your-client-id'
read -rsp 'synsmarts client secret: ' SYNSMARTS_CLIENT_SECRET && echo
export SYNSMARTS_MACHINE_TOKEN="$(
  curl --fail-with-body --silent --show-error \
    --request POST https://api.synsmarts.io/identity/o/api/token \
    --header 'Content-Type: application/x-www-form-urlencoded' \
    --data-urlencode 'grant_type=client_credentials' \
    --data-urlencode "client_id=${SYNSMARTS_CLIENT_ID}" \
    --data-urlencode "client_secret=${SYNSMARTS_CLIENT_SECRET}" \
    --data-urlencode 'resource=https://mcp-diagnostics.synsmarts.io' \
    --data-urlencode 'scope=diagnostics' |
  jq -er '.access_token'
)"
unset SYNSMARTS_CLIENT_SECRET

For Control, replace both diagnostics values with control. A token minted for one surface can’t authorize the other. In production automation, have your secrets manager inject the client credential and refresh the short-lived token before it expires.

Connect the machine from Codex

Codex reads the bearer token from the named environment variable:

codex mcp add synsmarts-diagnostics-machine \
  --url https://mcp-diagnostics.synsmarts.io/mcp \
  --bearer-token-env-var SYNSMARTS_MACHINE_TOKEN

Skip codex mcp login for this connection — that command starts the human browser flow.

Connect the machine from Claude Code

Create a project .mcp.json entry that references the environment variable. Claude Code expands ${SYNSMARTS_MACHINE_TOKEN} at runtime:

{
  "mcpServers": {
    "synsmarts-diagnostics-machine": {
      "type": "http",
      "url": "https://mcp-diagnostics.synsmarts.io/mcp",
      "headers": {
        "Authorization": "Bearer ${SYNSMARTS_MACHINE_TOKEN}"
      }
    }
  }
}

The file contains only the variable name, not the token. Start Claude Code from an environment where SYNSMARTS_MACHINE_TOKEN is set.

Rotate, revoke, or archive machine access

• Rotate creates a replacement secret and immediately invalidates the old secret and its issued tokens. Update the secrets manager, obtain a new token, and restart or reconnect the client.
• Revoke immediately stops the credential and its issued tokens from authorizing MCP calls.
• Archive moves revoked access into history. Archived history has no Create action. Unarchive it only to return the still-revoked record to the revoked list; it never restores access.

6. Discover the server and tools

Let the client complete server/discover and request tools/list. The returned tool list is filtered by:

• the connection’s Diagnostics or Control surface, or the public Docs catalog;
• the connection’s Team permissions;
• its wildcard or explicit App permissions;
• the Apps that currently belong to the Team.

The client must use the returned tool names and JSON Schemas. A tool omitted from discovery isn’t available to that connection.

7. List visible Apps

On Diagnostics or Control, call list_apps. It returns only the Apps currently resolvable through the connection, with the effective permissions for each App.

Docs doesn’t expose list_apps. Skip this step for Docs.

Select one returned App identifier for the verification call, and use only identifiers that list_apps returned: a foreign, moved, or ungranted App is deliberately indistinguishable from a missing App.

A Team-only Control connection for billing, membership, helpdesk, or another Team-scoped capability may return no Apps. In that case, skip the App-scoped verification and select a non-mutating Team tool returned by tools/list.

8. Make a read-only verification call

On Diagnostics, choose a read-only status or inventory tool returned by tools/list, provide the selected App identifier, and submit the call.

On Control, choose a supporting read such as current state, allowed values, a preview, or operation status — a read proves the connection without changing the App, so a mutating tool is never the right connectivity test.

On Docs, choose a search or read tool returned by tools/list and confirm that the result comes only from published customer documentation.

Verify the connection

The connection is ready when:

• server discovery completes; protected surfaces have no OAuth or audience error and Docs doesn’t initiate OAuth;
• tools/list returns only tools appropriate to the connection;
• list_apps returns only expected Apps, or none for an intentionally Team-only Control connection; Docs doesn’t expose list_apps;
• the verification call returns a bounded structured result;
• when the result or its operation record includes a request or trace identifier, you record it for support correlation.

If authorization changes while the client is connected, call tools/list again or reconnect. Capability-change subscriptions aren’t available yet.

Fix a failed first connection

• Wrong audience: confirm the client URL matches the connection’s selected Diagnostics or Control surface, then authorize again for that resource.
• Browser does not open: run the client’s login command again. Don’t add a callback port or redirect URI manually.
• Machine token request returns invalid_client: replace a mistyped, rotated, or revoked client credential. Never fall back to a human token.
• Machine MCP call returns unauthorized: obtain a fresh token and confirm its resource and scope match the server URL.
• Team missing from browser consent: ask an owner or admin to switch your MCP access on. If it was turned off, prior human connections were revoked.
• No visible Apps: for Diagnostics or App-scoped Control, have an owner or admin adjust machine access, or authorize a new human connection with the required Apps. An intentionally Team-only owner/admin Control connection may have no Apps.
